Mecalux Reliability
50 years of experience.

Boltless
Easy to assemble and install.

Modular System
Easily extendable.

Greater Quality
Long-lasting strenth and durability.

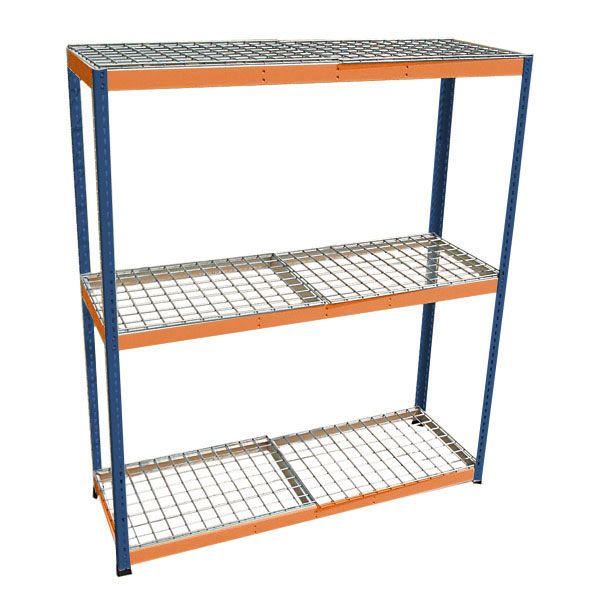

Heavy-duty boltless shelving with wire shelves
Made of the same quality as the other the Metal Point Plus boltless shelving system models, the option with shelves made out of welded wire mesh is used in cases where the passage of light, ventilation between shelves and viewing the products stored on all levels is required.
On the other hand, it is also especially suitable for the storage of highly flammable goods, so if the fire system is activated, the steel mesh allows the passage of water between levels, helping to put out the fire.

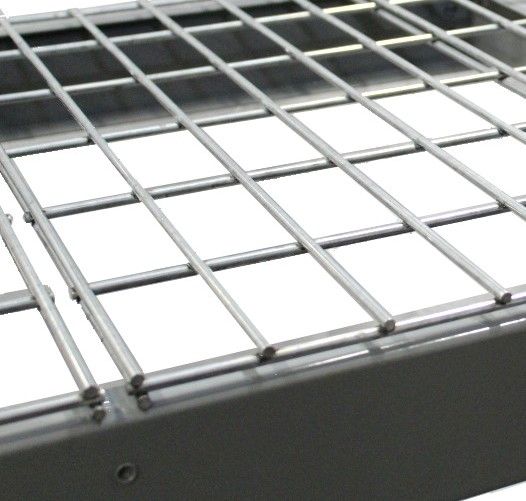

The mesh rests on the beams and the cross-ties, acting as a stiffening component.
Advantages
- 14 gauge steel parts. 4 gauge 3" square welded wire shelves.

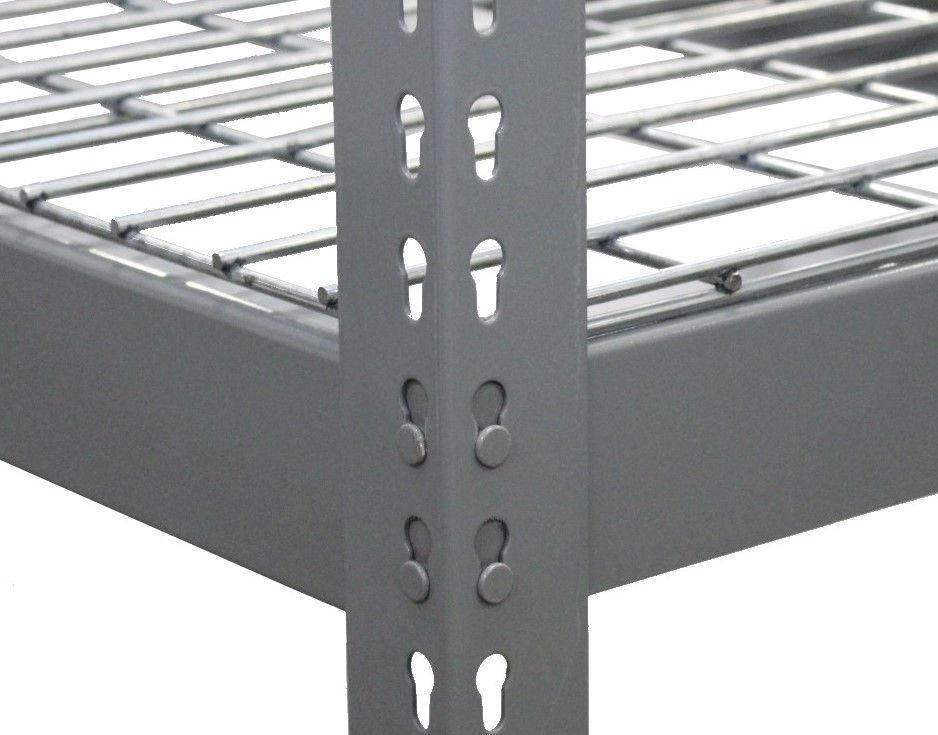

- Double rivet beams at each level for enhanced rigidity.
- They facilitate the passage of light, ventilation, and water.
- Center supports included in 72", 84" and 96" wide units for additional load capacity. Available in other sizes.
- No rust electrostatic epoxy-polyester lead-free powder coat finish.
- Easy boltless assembly. Color 3D assembly instructions provided.
Technical details:
Height | 120 '', 60 '', 72 '', 84 '', 96 '' |
---|---|
Width | 36 '', 48 '', 60 '', 72 '', 84 '', 96 '' |
Depth | 18 '', 24 '', 36 '', 48 '' |
Max shelf weight | 500 lbs |
Material | Metal |
Used for | Storage, Light and medium loads |
Location | Warehouse, Factory, Workshop |
Product layout | 3 levels |
Assembly Instructions | METAL_POINT_PLUS_Steel_Shelving_Unit_with_Wire_Shelves.pdf |
