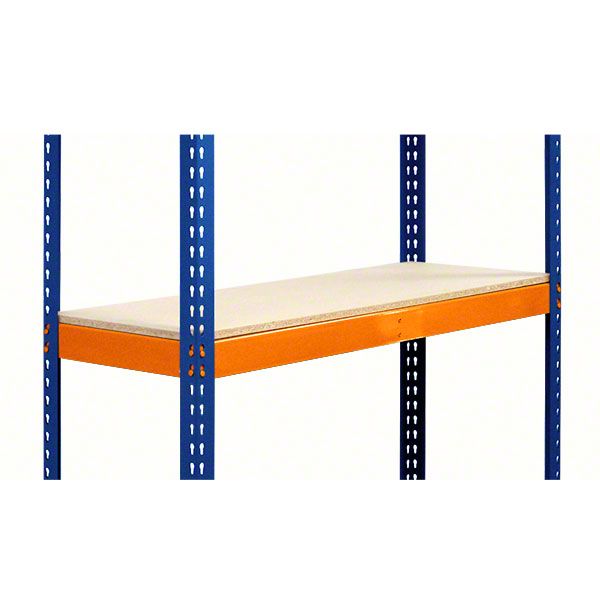

METAL POINT®PLUS extra shelf with particle board decking
SKU
NM1-3612-D-USA
Additional levels allow the expansion of the shelf capacity easily and affordably. Each level supports loads up to 1850lbs and includes all the elements needed for assembly.
Adapt the Point Plus Metal shelves to changing uses by adding extra levels
The capacity of the Metal Point Plus boltless shelves can be easily extended by adding additional levels. Like all other shelving elements, the levels fit snug together when assembled.

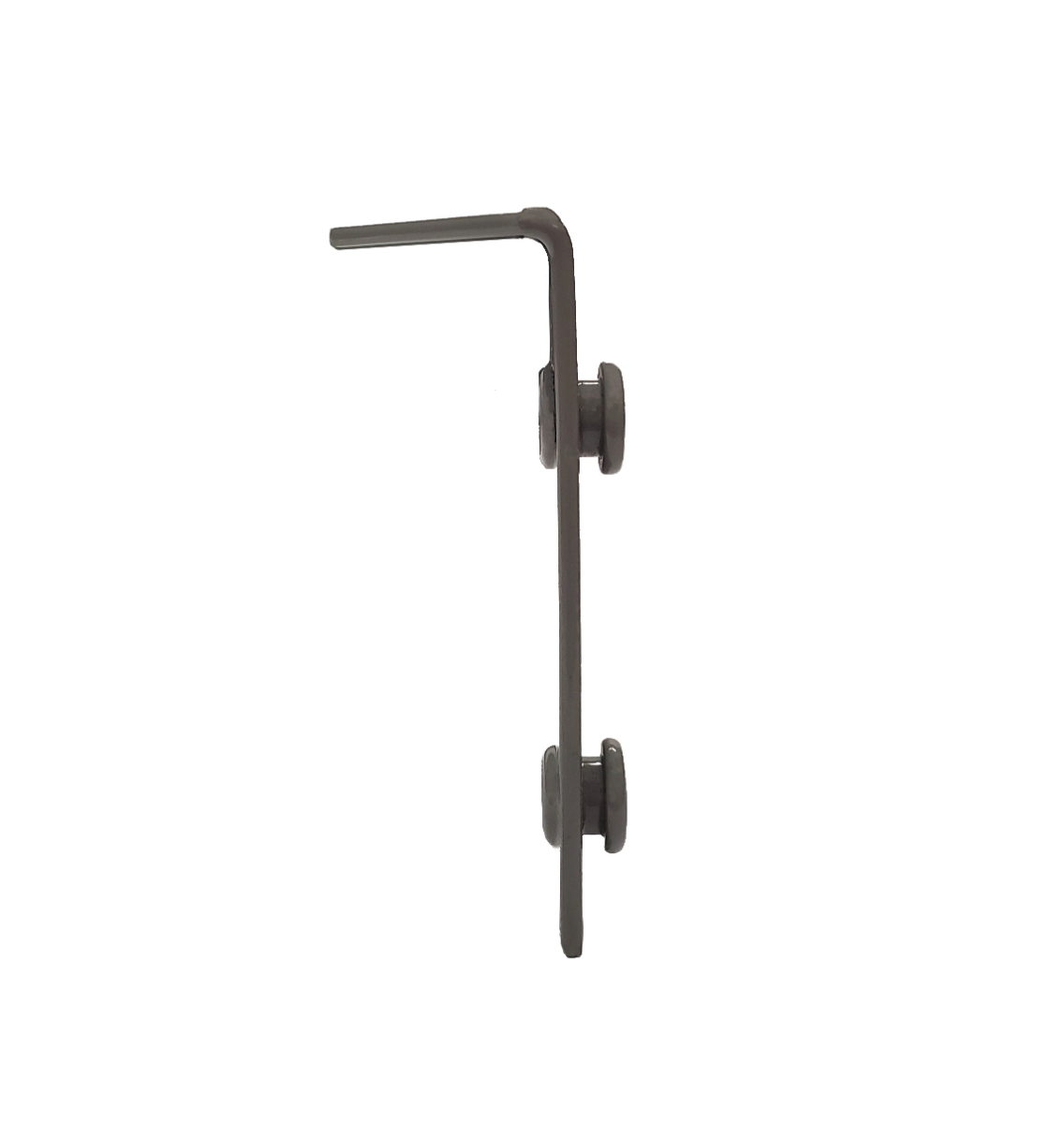

They are available in a variety of depths and widths, which perfectly adapt to existing shelves. Each level includes the elements needed for proper installation: double rivet beams at each end to facilitate joining them flush at the corners; two cross-ties that serve as supports, increasing the load capacity of the shelves; a brace; and a 16 mm thick chipboard panel, which together with the beams comprise the assembly supporting the load units.
Advantages
- Extra levels can support a weight of up to 1850 lbs. Ideal for all kinds of heavy loads.
- 5/8" thick M2 Industrial Grade particle board shelves.
- The posts are drilled every 1.5” to select the desired height levels freely.
- Additional levels are available in a variety of sizes, to adapt to all variations offered by the Metal Point Plus shelving system.
| Width | 36 '', 48 '', 60 '', 72 '', 84 '', 96 '' |
|---|---|
| Depth | 12 '', 15 '', 18 '', 24 '', 30 '', 36 '', 48 '' |
| Max shelf weight | 1,000 lbs, 1,100 lbs, 1,230 lbs, 1,325 lbs, 1,700 lbs, 1,850 lbs |
| Material | Agglomerate, Metal |
| Used for | Storage, Boxes or totes, Heavy loads |
| Location | Warehouse, Factory, Workshop |
| Product layout | 3 levels |
