Bulk Rack - Add-on Bay (with Steel Decking)
Set up your own heavy-duty shelf with additional units

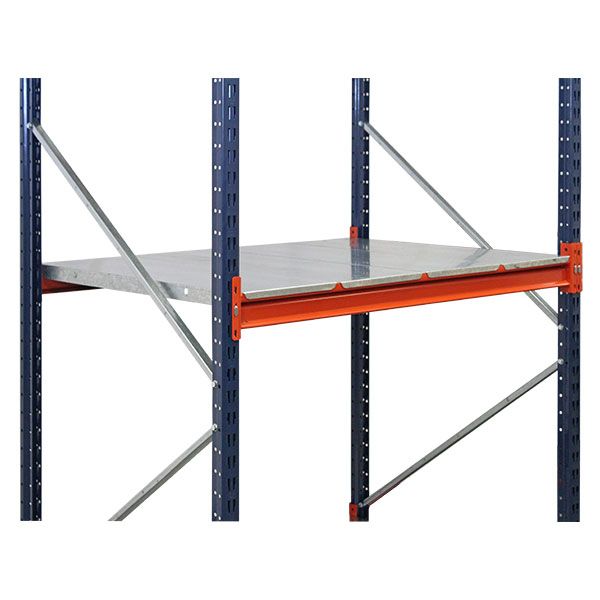

This unit affordably extends heavy-duty shelves because only an extra “Z” beam frame is needed to configure a new unit. It includes the following components: 3 levels with the corresponding beams and galvanized steel panels, 2 posts, 2 heavy-duty feet, 5 diagonals, 2 cross-ties, 2 anchors, leveling plates and the fasteners required to join all parts together.

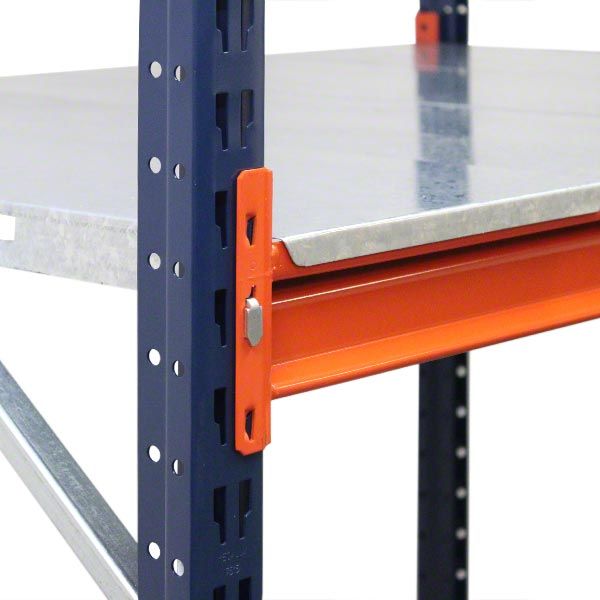

The struts are joined together by cross-ties and diagonals and where you attach the other components of the shelf. To do this, they are slotted every 2" on the front to allow fitting the beams at the desired height. They also have two lateral slotted rows: one slot every inch for placing supports and accessories, and another every 2" for attaching the diagonals.
- Configure the shelves to suit you by joining all the units you need together.
- Ability to add additional levels, height-adjustable every 2''.
- These shelves are especially suitable for storing medium and heavy loads manually.
- Easy assembly and highly mobile.
|Height||120 '', 144 '', 72 '', 84 '', 96 ''|
|Width||48 '', 60 '', 72 '', 84 '', 96 ''|
|Depth||24 '', 30 '', 36 ''|
|Max shelf weight||1,425 lbs, 1,725 lbs, 1,975 lbs, 2,200 lbs, 2,500 lbs, 1.425 lbs|
|Used for||Storage, Heavy loads|
|Location||Warehouse, Factory, Workshop|
|Product layout||3 levels|
