Pallet Rack - Beam Pair
Pallet rack beams

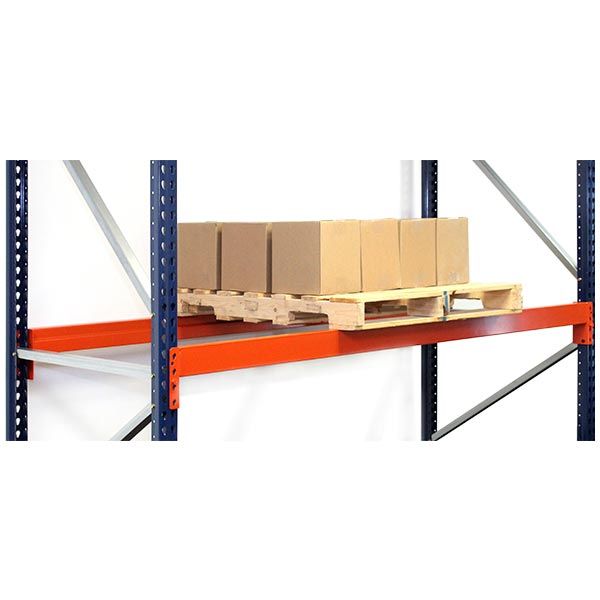

Pallet rack beams are horizontal components that are used to connect pallet rack upright frames together.
They are available in four different lengths (96”, 108”, 120” and 144''), to adapt to the various pallet racking widths. Its high quality enables a capacity of up to 5,300 lbs per extra level.
The standard version of the pallet rack includes 2 to 3 load levels, depending on its height. If the type of product you want to store requires more levels, you can add these additional beams. Their assembly is incredibly easy, and they are adjustable in height.

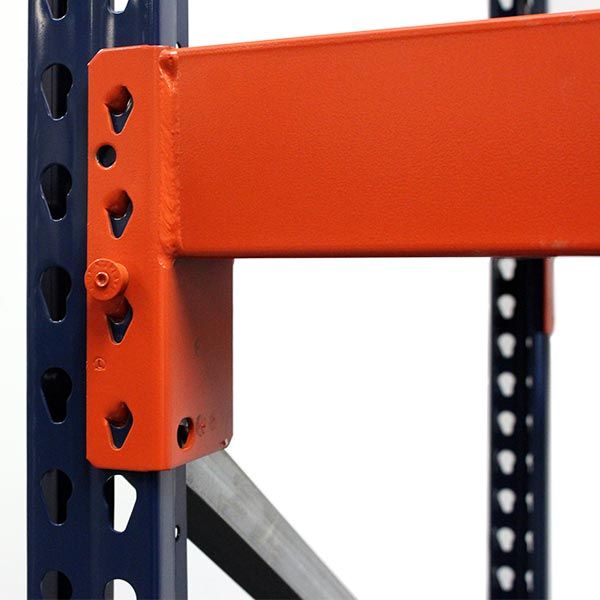

Each beam comes with a piston lock system, which provides a secure connection preventing the beam from disengaging, even when direct contact is made by a forklift truck.
Load Capacity Based on Uniformly Distributed Loads. Beam spacing is from floor to top of beam, or top of beam to top of beam. Use largest dimension. For Non-Seismic use only.
|Width||96", 108", 120", 144"|
|Max shelf weight||3,000 lbs, 4,300 lbs, 4,350 lbs, 4,550 lbs, 5,000 lbs, 4.000 lbs|
