Pallet Rack - Add-on Bay
Conveniently increase the capacity of your pallet racking with add-on units
Shelving Direct pallet racking is known for its flexibility, as they can handily adapt to load and space requirements. In this regard, the add-on lets you increase shelving capacity by adding as many new base units as needed, with the same quality but at a lower cost.
The add-on comes in various heights and depths to suit the original unit. It consists of a single frame, as it is coupled to the frame of the existing shelf, and two or three load levels depending on the height.

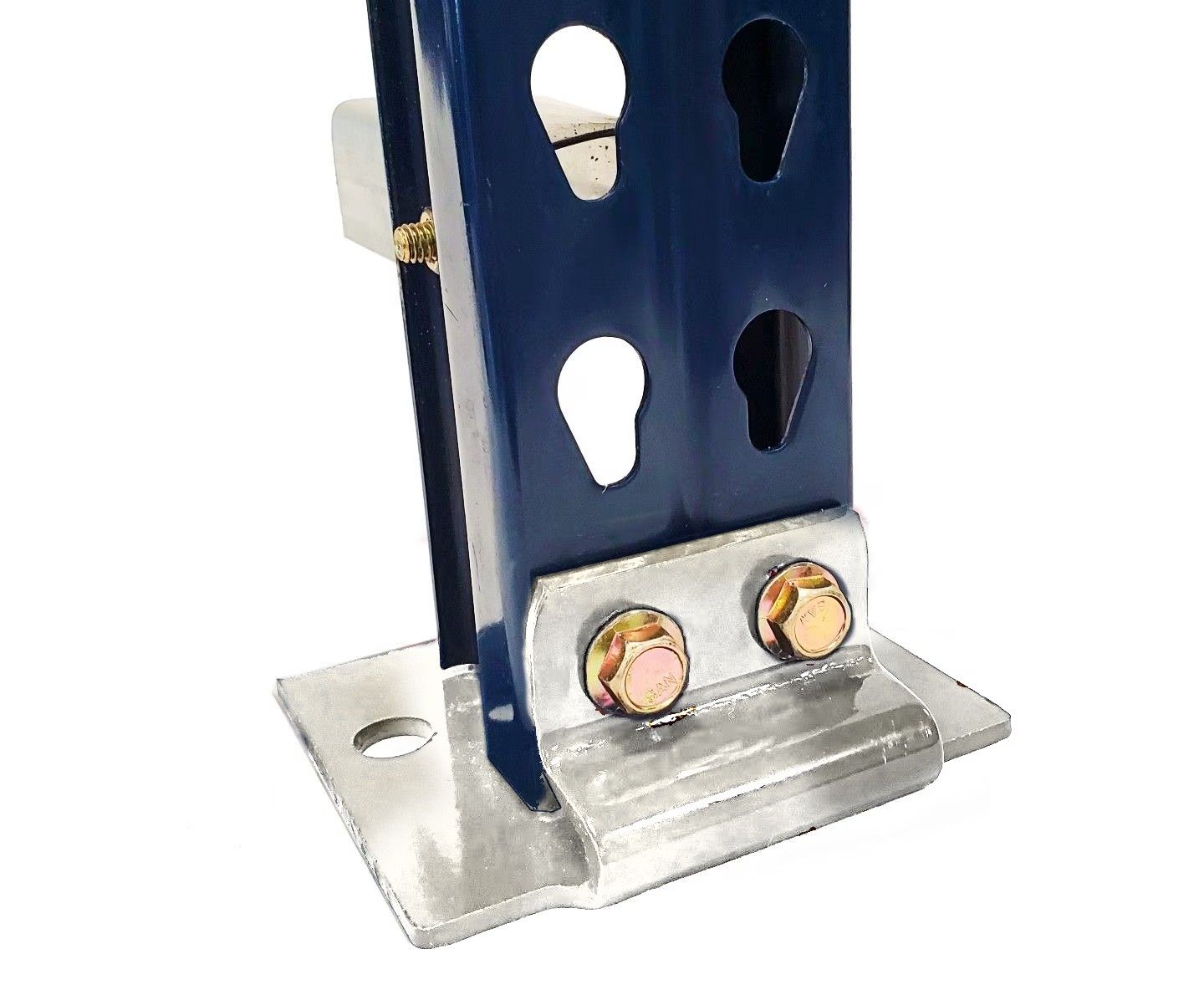

The frame assembly includes all the items needed to extend the shelf: two struts, cross-ties and diagonals needed to join them together, and heavy-duty feet to attach the new unit to the floor.
- Shelving Direct's heavy-duty pallet rack units are not only convenient but are sturdy enough to support up to 19,980 lbs per unit.

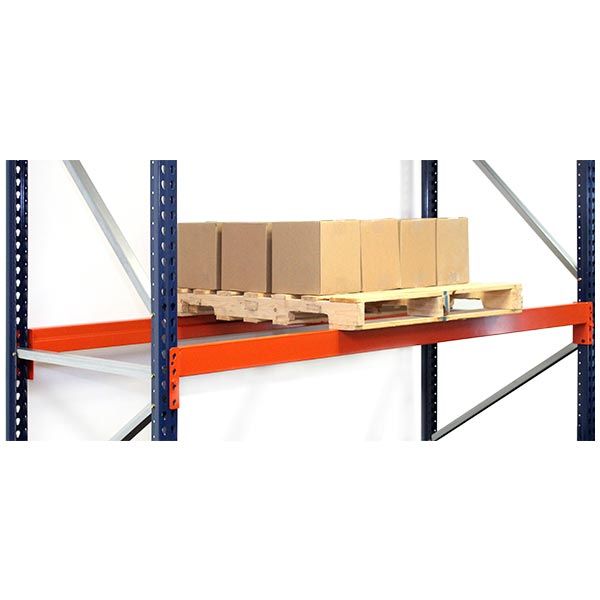

- Beams that are 9' long can hold three 32" wide pallets on each level.
- The add-on units are the fastest, most affordable and safest way to extend pallet racking.
- Frame struts can be safeguarded by protectors for heavy-duty racks.
|Height||120 '', 144 '', 168 '', 192 '', 240 '', 96 ''|
|Width||108 '', 120 '', 144 '', 96 ''|
|Max shelf weight||3,000 lbs, 4,300 lbs, 4,350 lbs, 4,550 lbs, 5,000 lbs, 5,300 lbs, 3.000 lbs , 4.000 lbs|
|Used for||Storage, Heavy loads|
|Location||Warehouse, Factory, Workshop|
|Product layout||2 levels, 3 levels|
